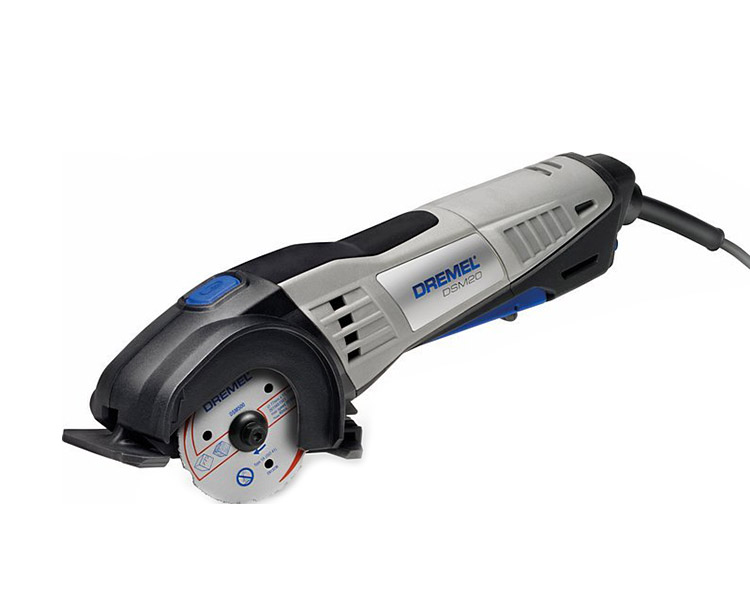

DREMEL® DSM20 (DSM20-3/4)

Compact saw – For precise, clean and straight cuts with clear line of sight

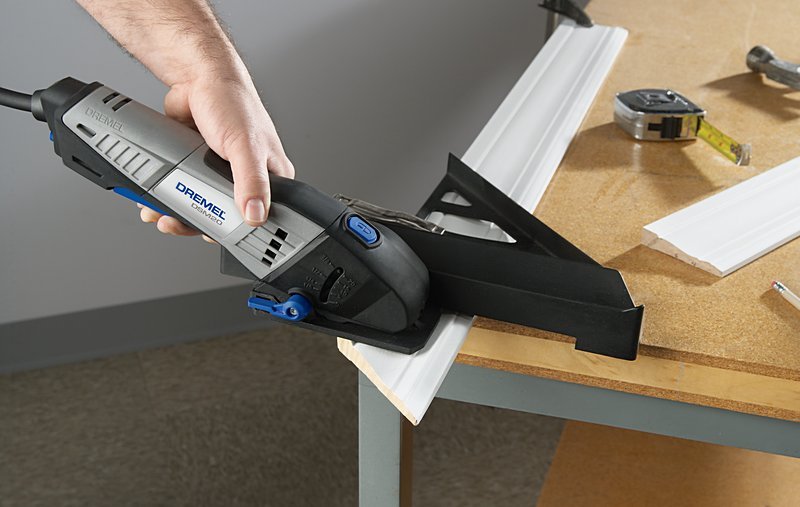

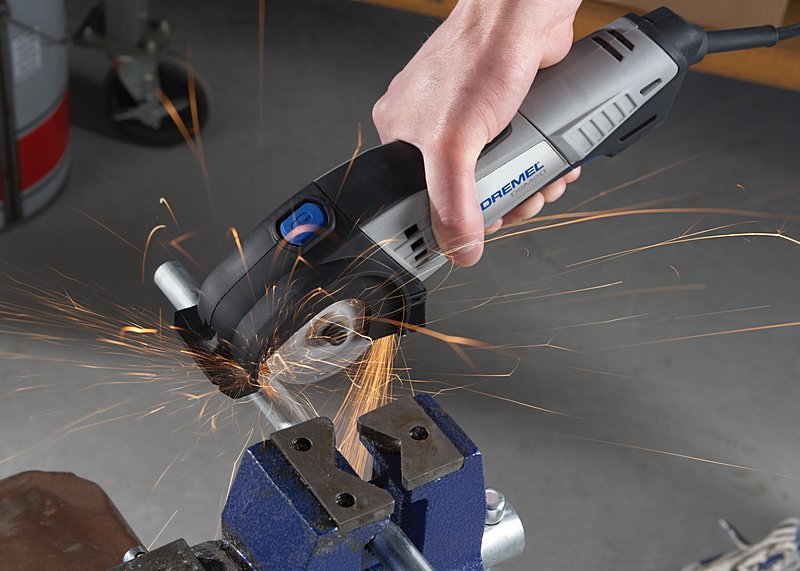

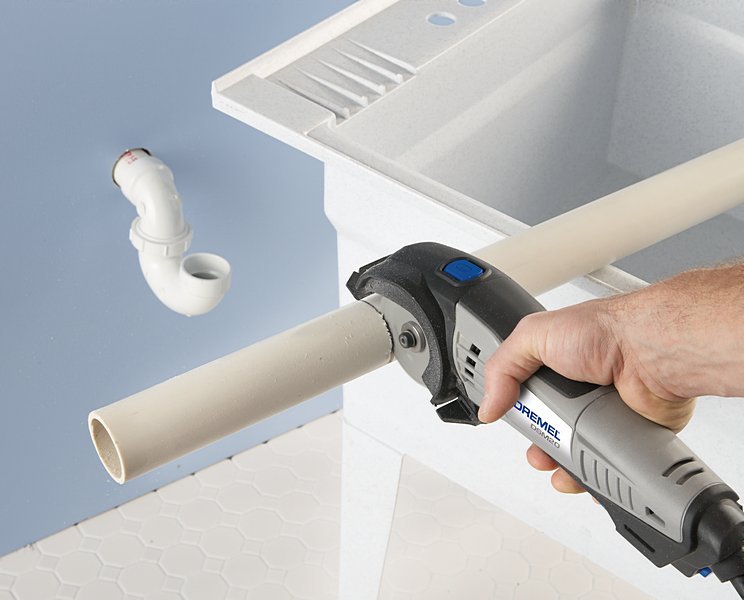

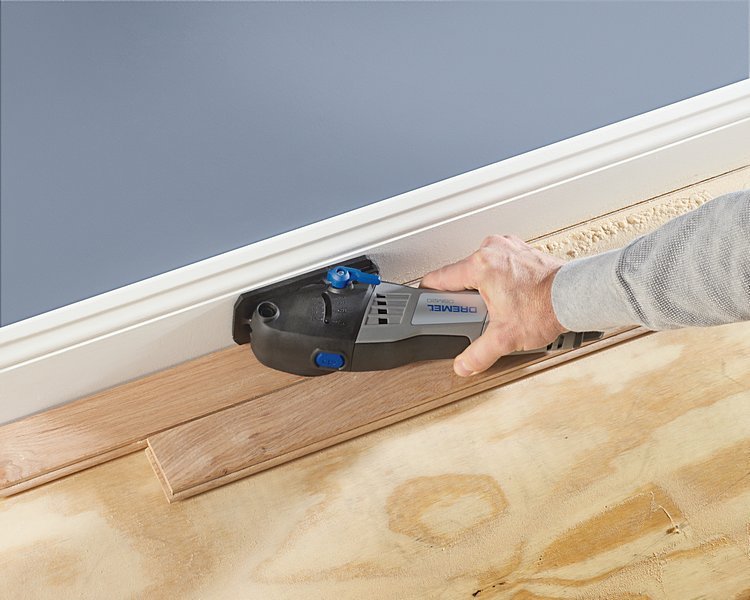

The Dremel DSM20 is the ultimate compact saw with an excellent line of sight. With its clear line of sight, powerful motor and use of abrasive wheels, this saw can easily perform precise straight, plunge and flush cuts in materials up to 20mm thick. The product comes with a wide variety of non-intimidating abrasive cutting wheels, which in combination with the dust extraction port allows for clean and accurate work in wood, metal, plastics, stoneware and tiles. This kit includes three attachments which help to enhance the cutting capabilities of the Dremel DSM20. Cutting parallel to the edge of the work is simple with the edge guide, while the 2x4 cutting guide can be used to quickly and accuratelly make cuts in 2x4 timber. Dremel DSM20 the ultimate cutting solution.

Technical Specifications

Rated power input   300 W
Voltage   230 V
Weight   1.5 kg
Length   133 cm
Width   8.5 cm
Depth   7 cm
No load speed   0 - 20,000 1/min
Battery technology   n.a.
Cutting depth   18 mm
Accessory quick change system   Accessory Quick Change Lever
Sound pressure   79 dB(A)
Sound power   90 dB(A)
Vibration   6.3 m/s²
DREMEL® DSM20 (DSM20-3/4)

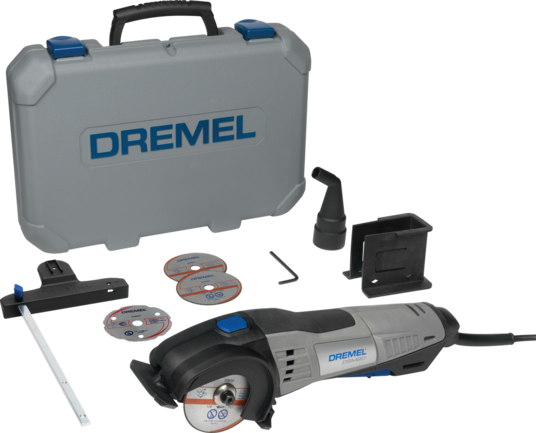

Packaging Contents

  • Dremel DSM20
  • 1x Multipurpose Carbide Cutting Wheel (DSM500)
  • 3x Metal and Plastic Cutting Wheel (DSM510)
  • Vacuum Cleaner Attachment
  • Parallel Guide attachment
  • Instruction manual
  • Sturdy and spacious storage case

Order number: F013SM20JB
 EAN-Code: 8710364060733

DREMEL® DSM20 Multipurpose Carbide Cutting Wheel (DSM500)

DREMEL® DSM20 Multipurpose Carbide Cutting Wheel (DSM500)

The DSM500 is a multipurpose carbide cutting disc. This abrasive cutting wheel with carbide grit is designed for doing straight and plunge cuts in wood and other soft materials.

DREMEL® DSM20 Metal and Plastic Cutting Wheel (DSM510)

DREMEL® DSM20 Metal and Plastic Cutting Wheel (DSM510)
The DSM510 is a reinforced type 1 abrasive cutting wheel which is designed to cut a variety of materials such as metal and plastic.
